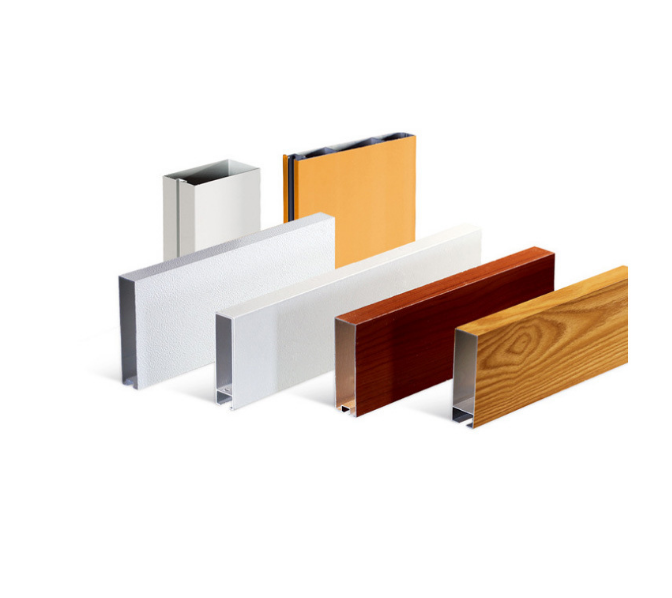

Aluminum square pass is divided into profile aluminum square pass and U-shaped aluminum square pass. U-shaped square pass is divided into openings, and profile square pass is sealed.

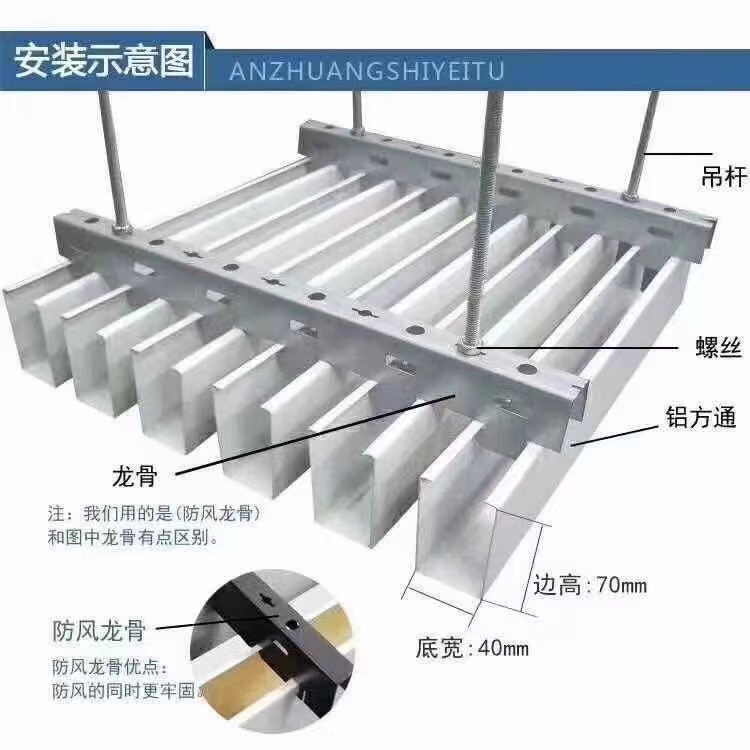

It is composed of bottom and high, and the color is divided into baking paint and wood grain (thermal transfer and roller coating). The installation structure is generally square pass + keel + hanging

Pole installation, keel size standard is 3m/piece

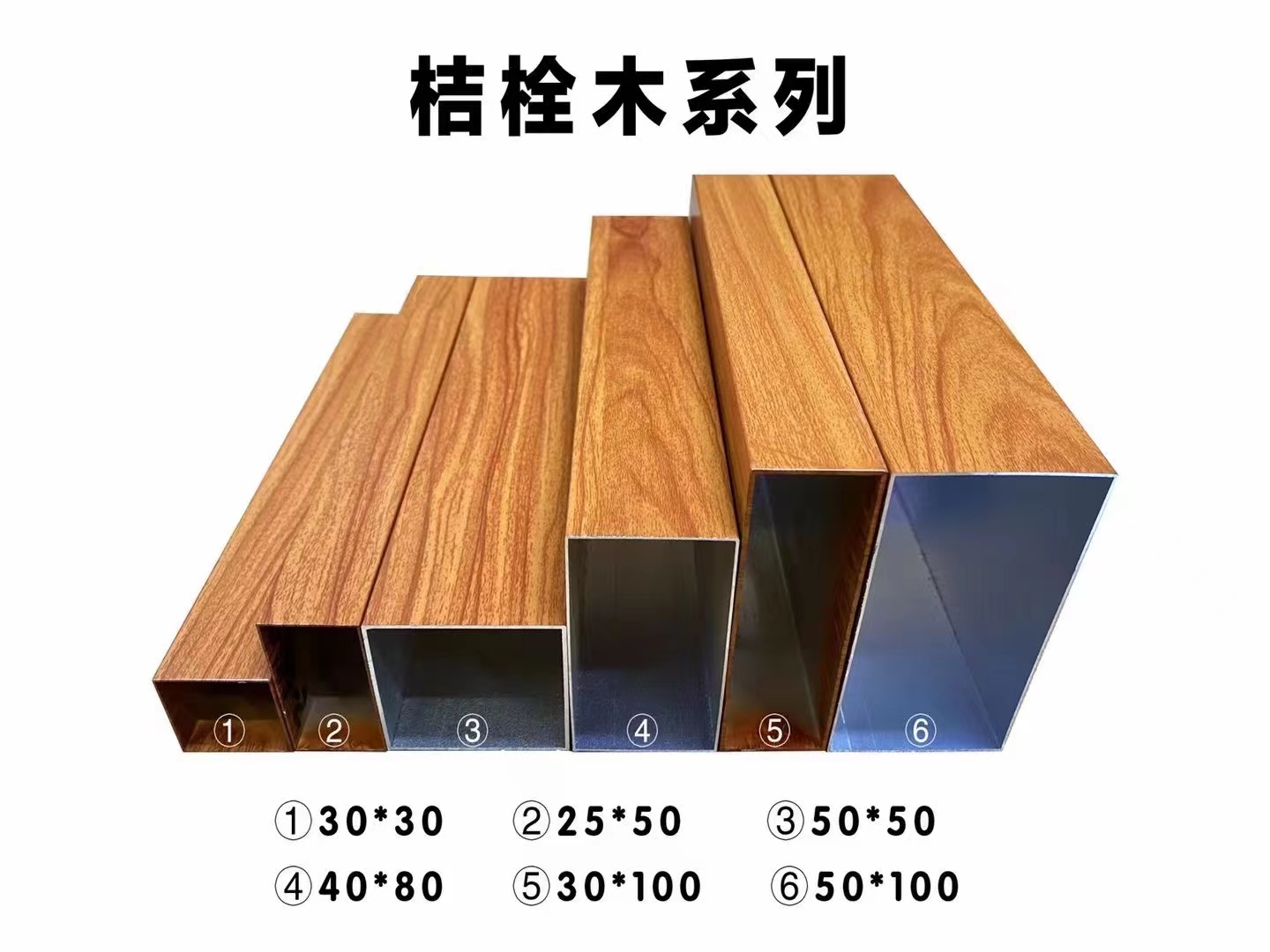

Specifications and dimensions: the usual small size of U-shaped aluminum square is 25*25mm, and the usual small size of profile square is 30*38mm.

Each factory has different molds, and can also be produced according to actual needs. The non-standard profiles square pass and U-shaped can be drawn by bending or welding.

The way to produce customization is what we often call the arc-shaped aluminum square pass.

Material: U-shaped aluminum square pass material has two kinds of iron and aluminum, and the profile square pass is made of aluminum;

How to know how much aluminum square pass is used for one square?

Calculation method: per square / (base size + spacing size) = amount per square (m)

 Product Detail Show

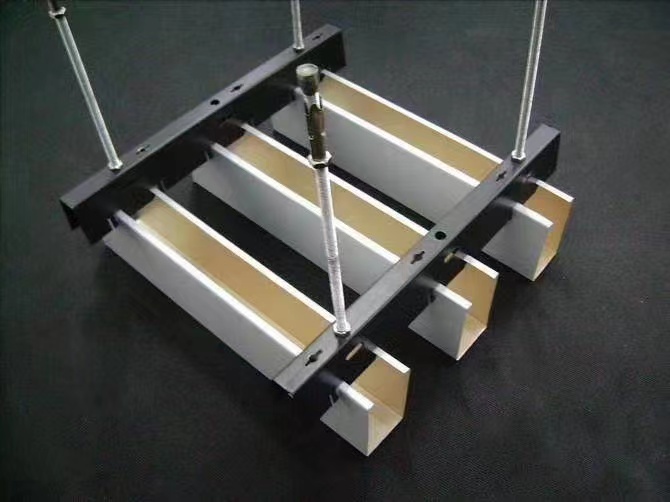

Installation
